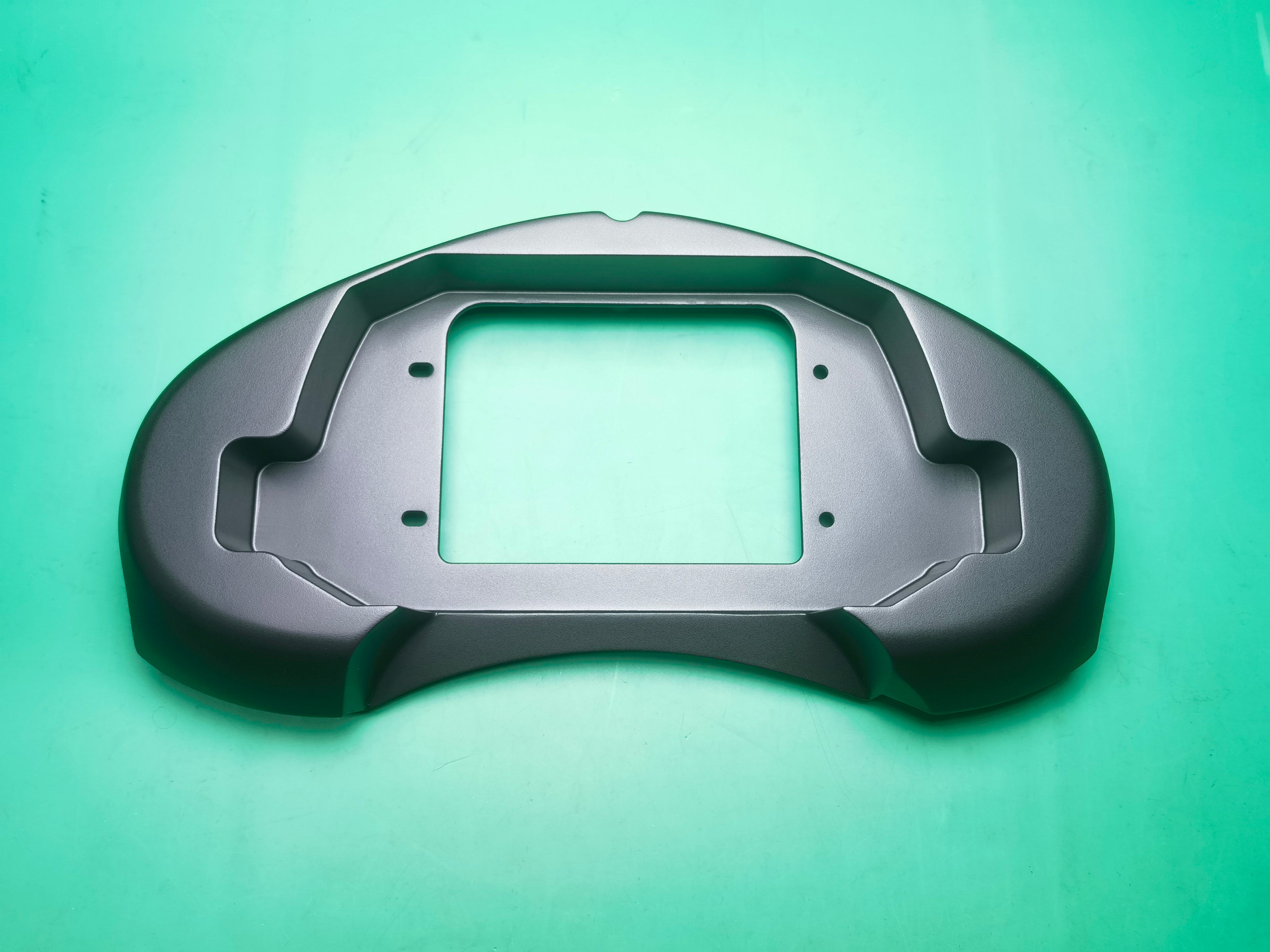

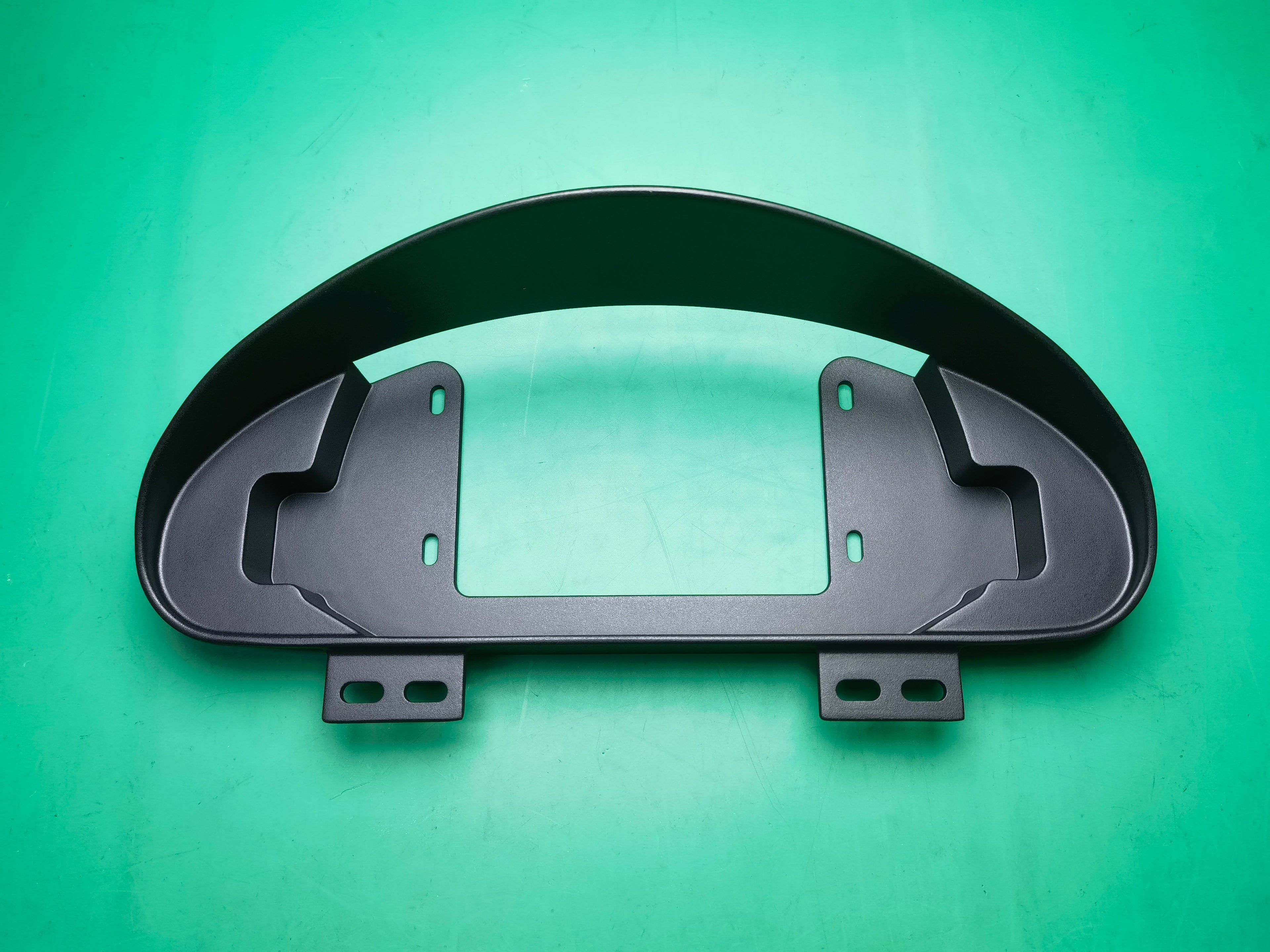

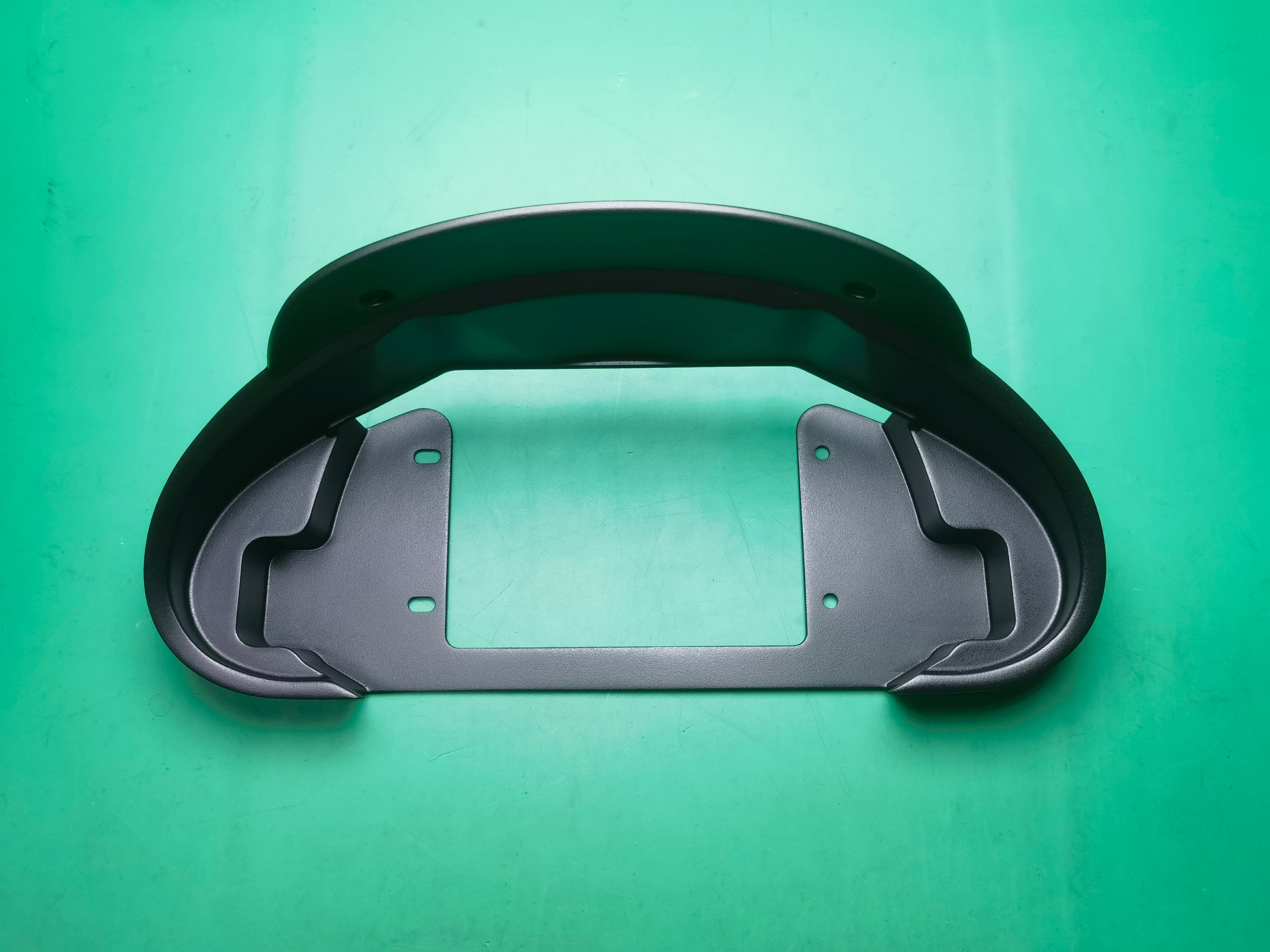

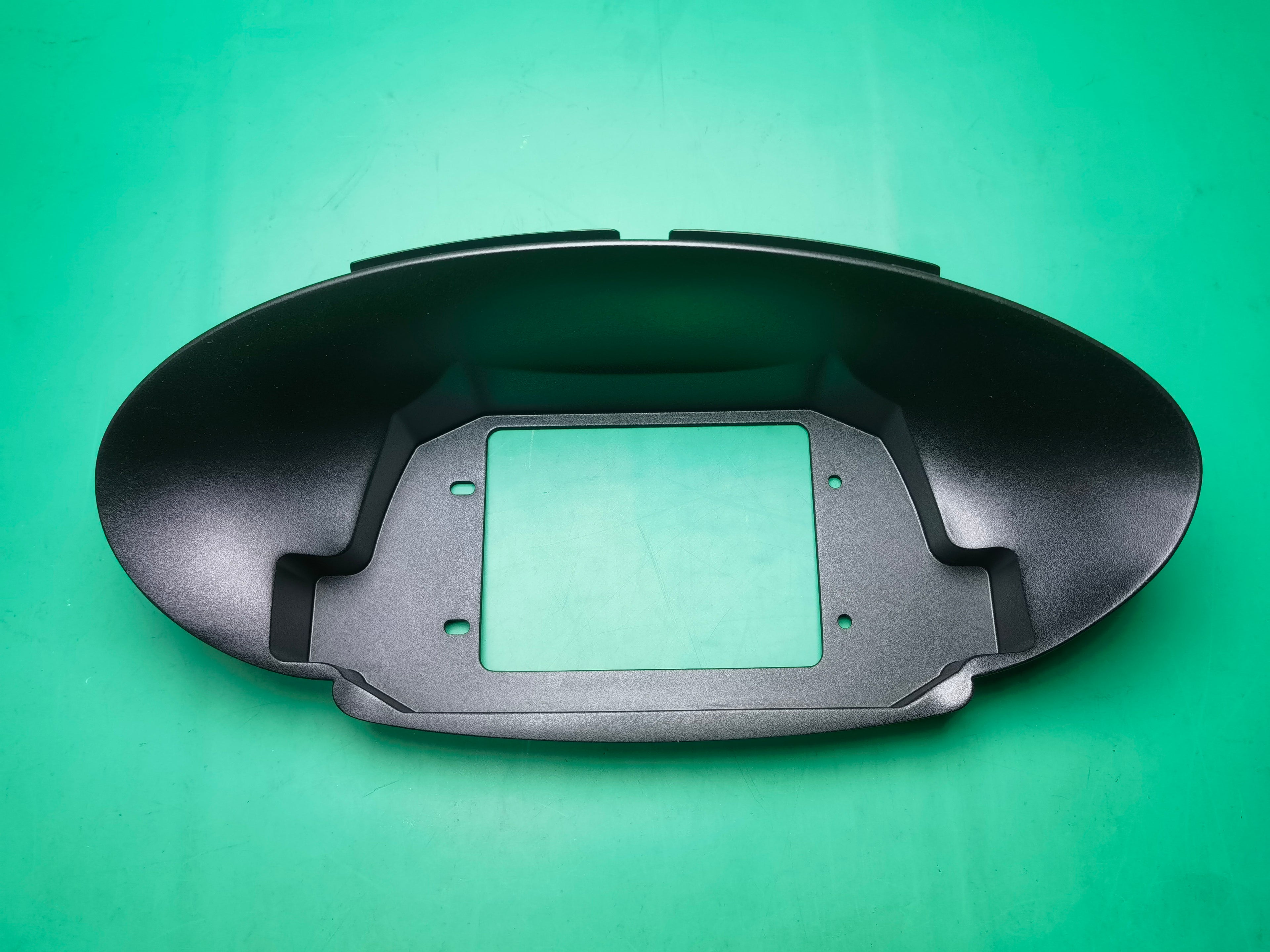

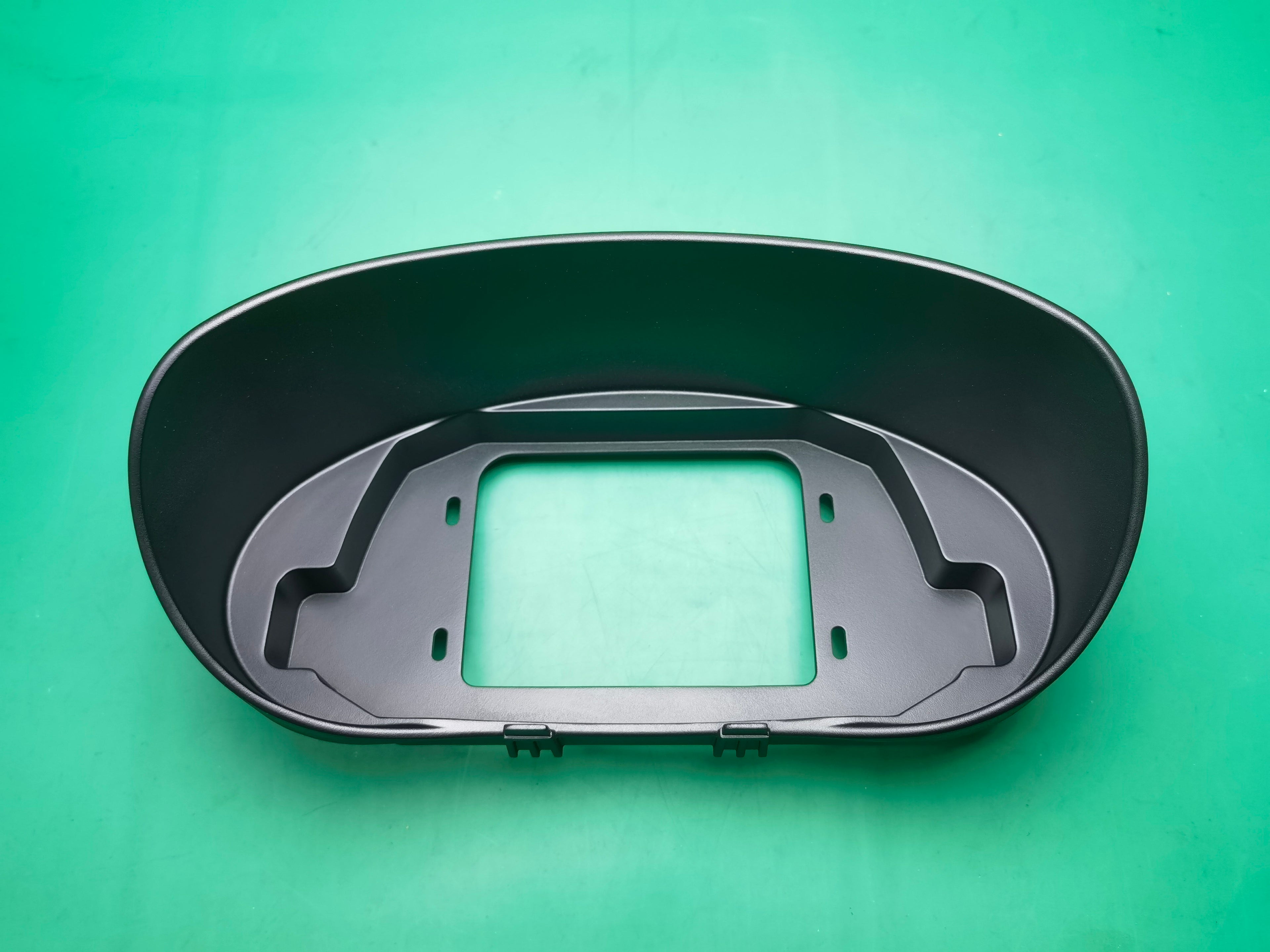

The Racing Display bolt-in mount replaces your factory instrument cluster, allowing you to install the AiM/Link MXG digital dash with a clean, factory-quality fit.
Installation is straightforward: remove the original cluster, secure the mount using the factory mounting points, and refit the surrounding trim. No cutting or modification — just a seamless upgrade that looks like it belongs.
Each mount is engineered to suit all variants of the listed vehicle model and is compatible with both LHD and RHD configurations, unless a specific model requires separate LHD/RHD versions (which will be clearly noted).

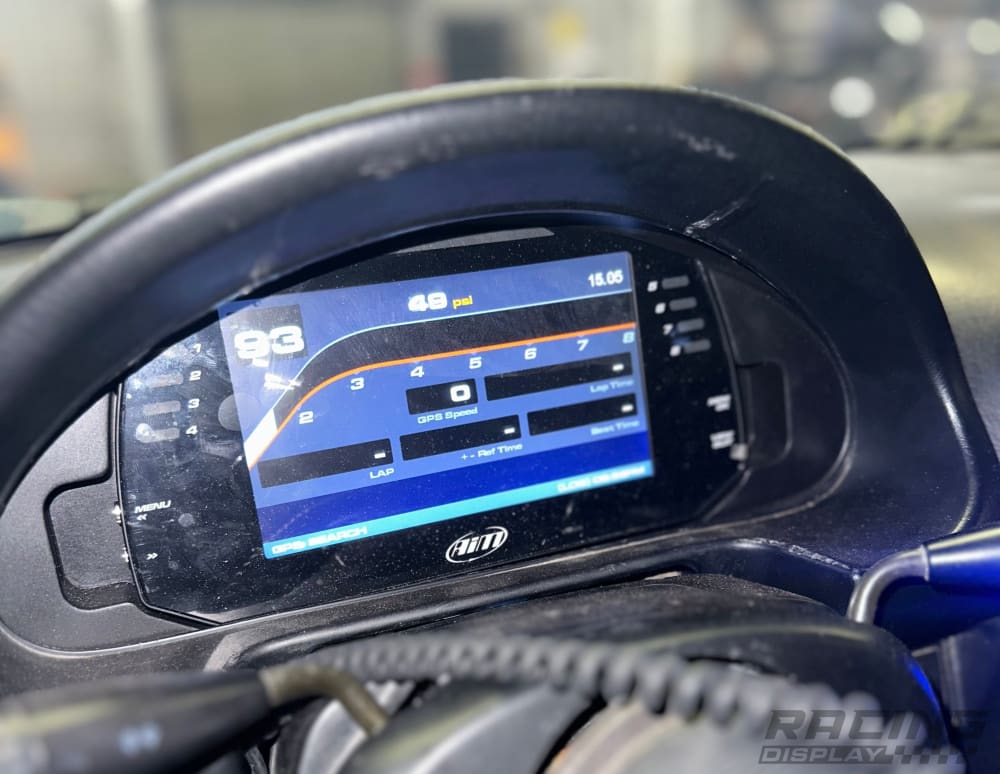

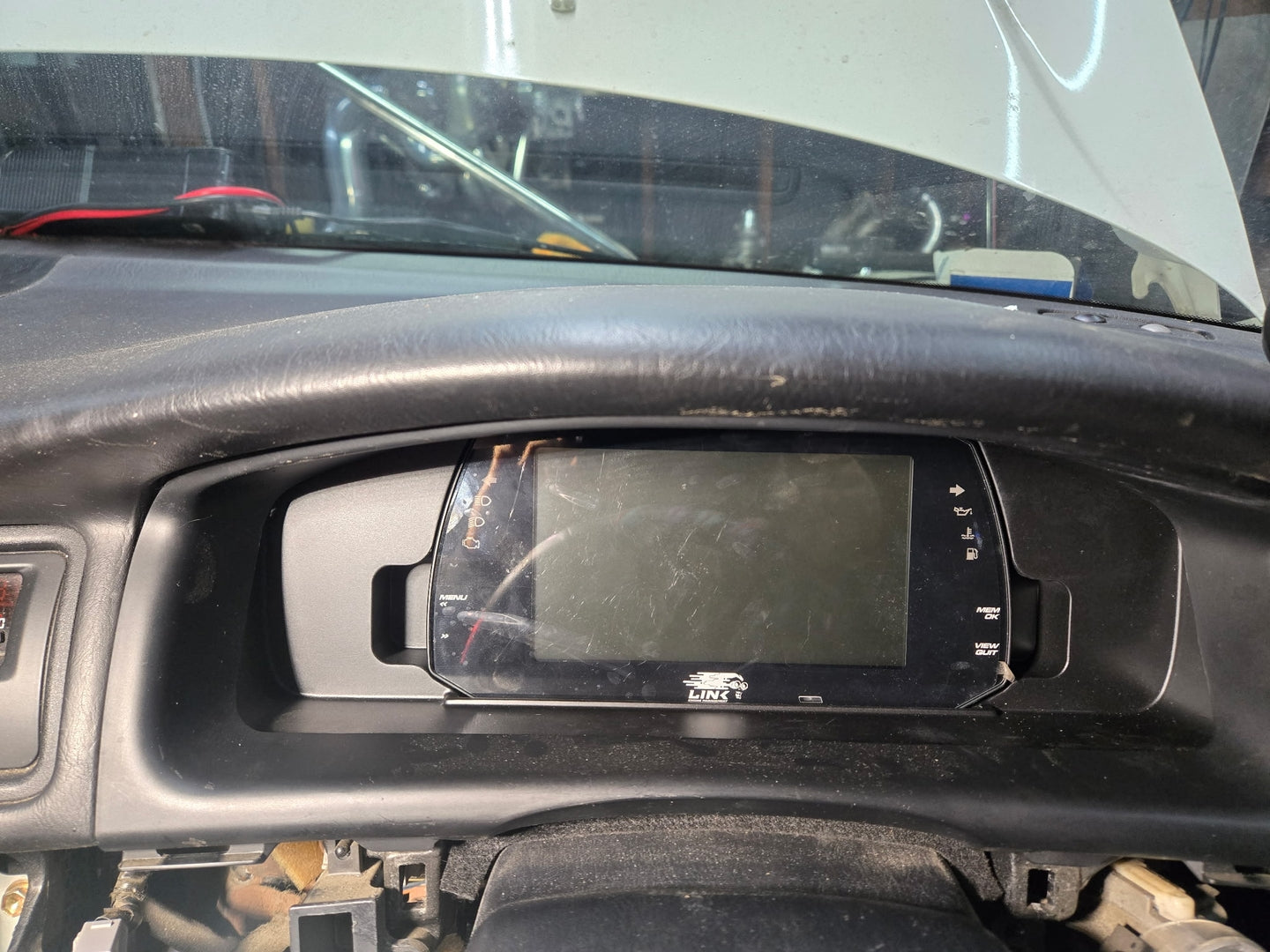

The display sits in a recessed pocket for a flush, factory-style finish.
-
Durable construction – Manufactured from heat-resistant, automotive-grade polymers
-
Professional finish – Smoothed and painted matte black for an OEM-style appearance
-
Custom options – Can be modified to accommodate additional gauges or lights
-
Easy installation – Straightforward bolt-in fit using factory mounting points
Popular Platforms Supported:
-
Nissan: Skyline / GT-R (R32, R33, R34), Silvia / 180SX / 200SX / 240SX (S13, S14, S15), 280ZX, 350Z, 370Z
-
Toyota: MR2 (SW20), Supra (A70, JZA80), Chaser (JZX90, JZX100), Aristo (JZS147, JZS161), 86
-
Mazda: RX-7, RX-8
-
BMW: E30, E36
-
Mitsubishi: Lancer Evo (7/8/9, 10)
-
Subaru: WRX / STI (GR/GV, GD/GG, VA, GC8), Forester (SG9, SH)
-
Honda: Civic (EG, EK), Type R (EP3, DC2)
-
Lexus: GS300 (JZS147, JZS161), XE10, Z30
-
Ford: Mustang S550, Falcon
-
Holden: Commodore
-
Chevrolet: Camaro
-
Mercedes: 190, W204/C204
Don’t see your chassis listed here? Use the dropdown selector above to find your specific model, or contact us to request a new platform.
About the AiM/Link MXG
The AiM MXG is a 7-inch colour TFT dash logger built for motorsport. It features an 800 x 480 pixel display with 1,100 lumens of brightness, an ambient light sensor for automatic dimming, 10 integrated RGB shift light LEDs, and 8 freely configurable alarm LEDs — giving you full control of how critical data is presented at a glance.
The MXG connects to over 2,000 ECUs via CAN, RS232, or K-Line, making it one of the most broadly compatible dash loggers on the market. It includes an internal 3-axis accelerometer and gyroscope, Wi-Fi connectivity, and 4GB of internal memory for data logging. The anodized aluminium body and IP67 waterproof rating make it suitable for demanding race environments.
The Link MXG Strada is the street-focused variant of the same platform, offering the same 7-inch display in a configuration optimised for road and track day use. Racing Display manufactures vehicle-specific bolt-in mounts engineered to fit the AiM/Link MXG precisely into your factory dash opening. No cutting, no fabrication — just a clean, factory-style finish that looks like it belongs. Note: the AiM/Link MXG display is sold separately and not included with the mount.
